Integrated Power Module (IPM)

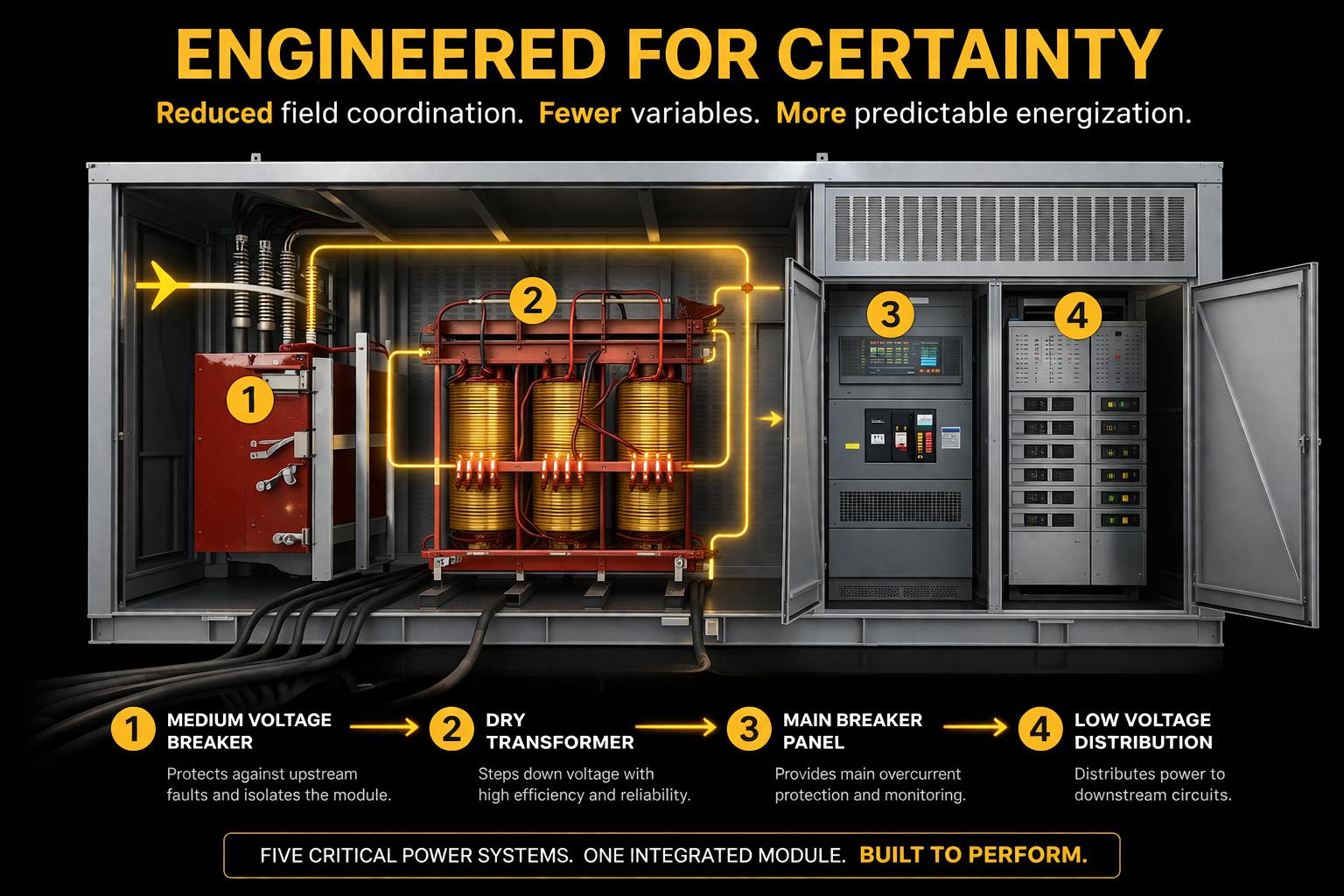

A fully integrated power system that eliminates field complexity and accelerates time to energization.

Reimagining Power Infrastructure

Growing power demands are exposing the limitations of traditional infrastructure—long build times, complex integration, and costly delays. To keep pace, the industry is shifting toward more streamlined, modular approaches that reduce on-site work and simplify deployment. The result is a faster, more reliable path to delivering utility-ready power where and when it’s needed.

From EV charging networks to data centers and renewable energy integration, we deliver utility-ready power systems that reduce complexity, accelerate timelines, and make large-scale electrification feasible.

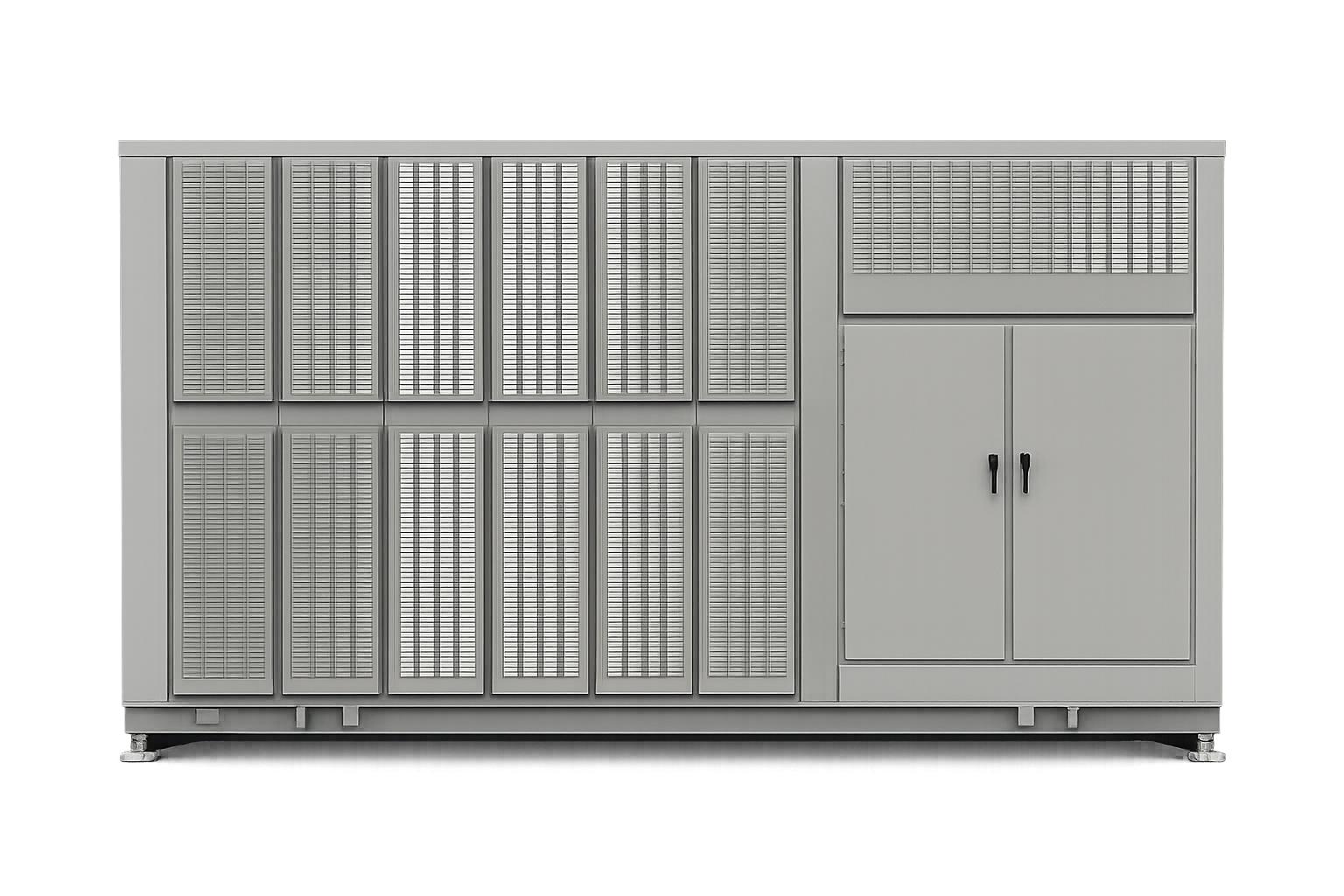

Enclosure & System Design

Application: Indoor | Outdoor

Container: NEMA 1 | NEMA 3R

Feed: Bottom | Loop | Radial | Top | Daisy Chain

Altitude: Maximum 3,300 ft. Above Sea Level

Ambient Temperature: Minimum -40C | High 50C

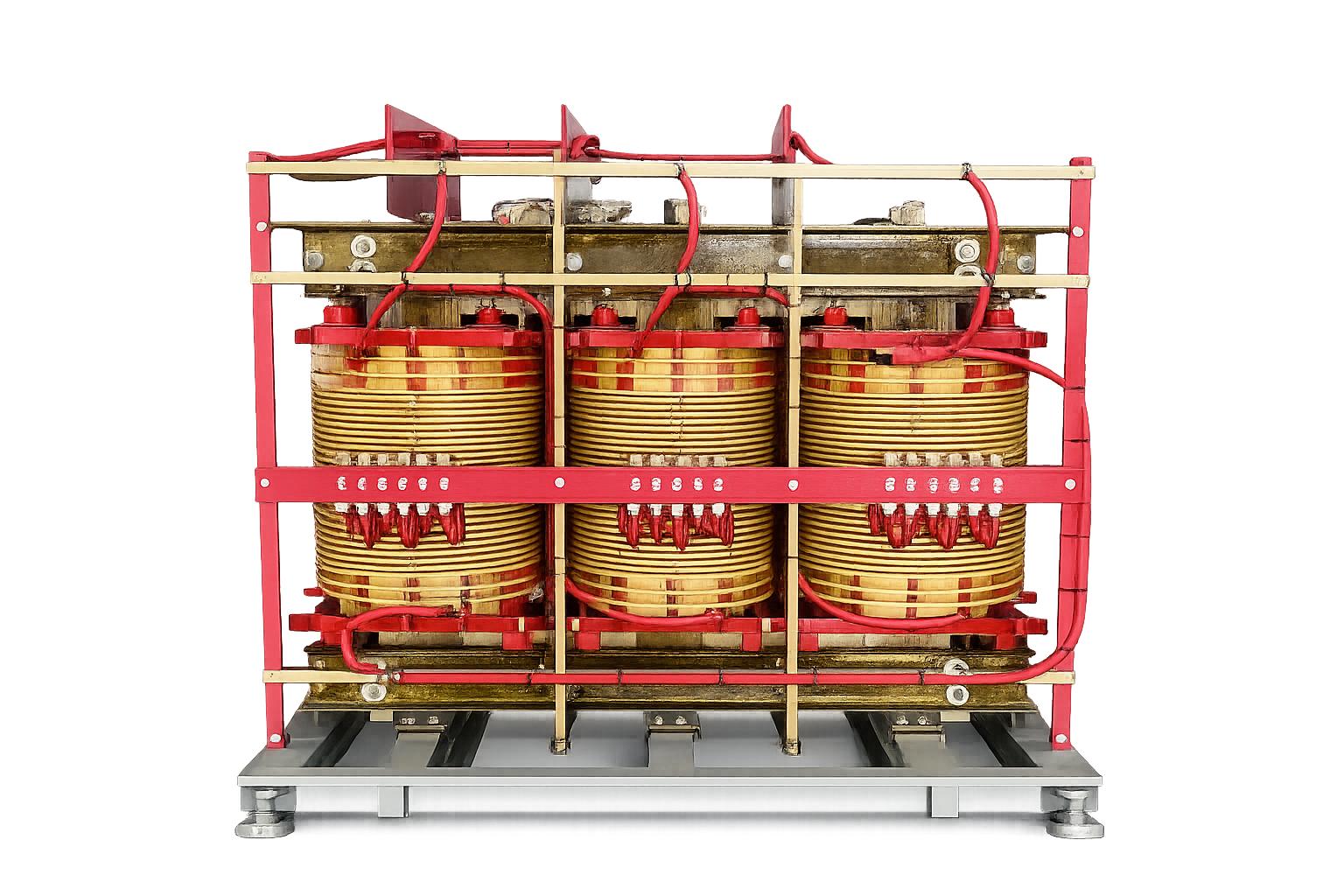

Transformer Options

Type: Dry | Oil

Dry: CRT | VPI
Oil: FR3 | Mineral | Natural Ester | Synthetic

Phase Connection: 3-Phase

Cooling Class: Air Force (AF) | Air Natural (AN) | ONAN | KNAN

Winding: Aluminum (AL) | Copper (CU)

Connection: Delta | Delta Star | Ground WYE | WYE

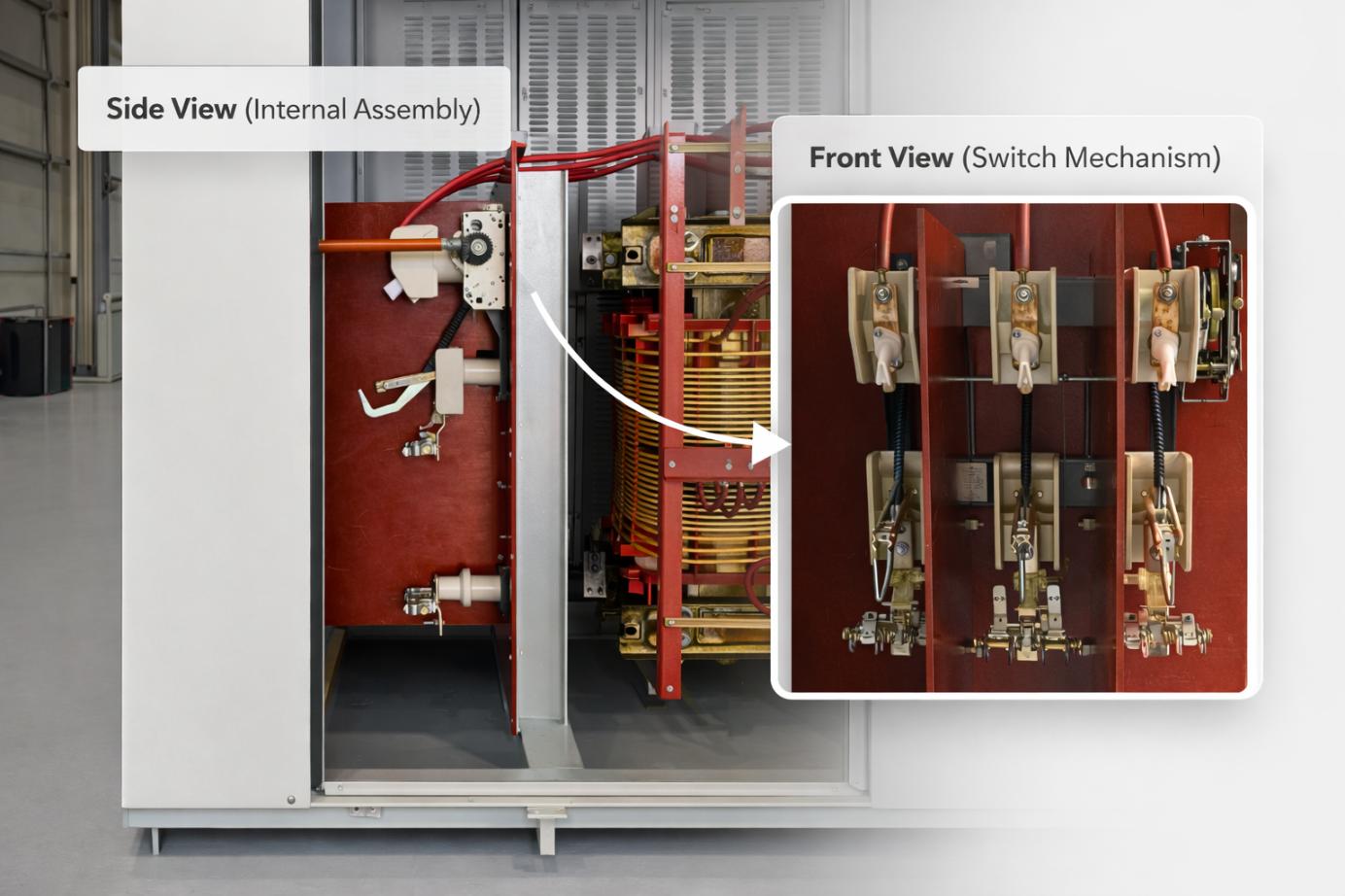

MV Switch: 5 to 35 kV with Fuse

Transformer: 500 to 5,000 kVA

Voltage: 4.16 to 35 kV

Output: 408/208 | 415/240 | 480/277 | 600/247 V

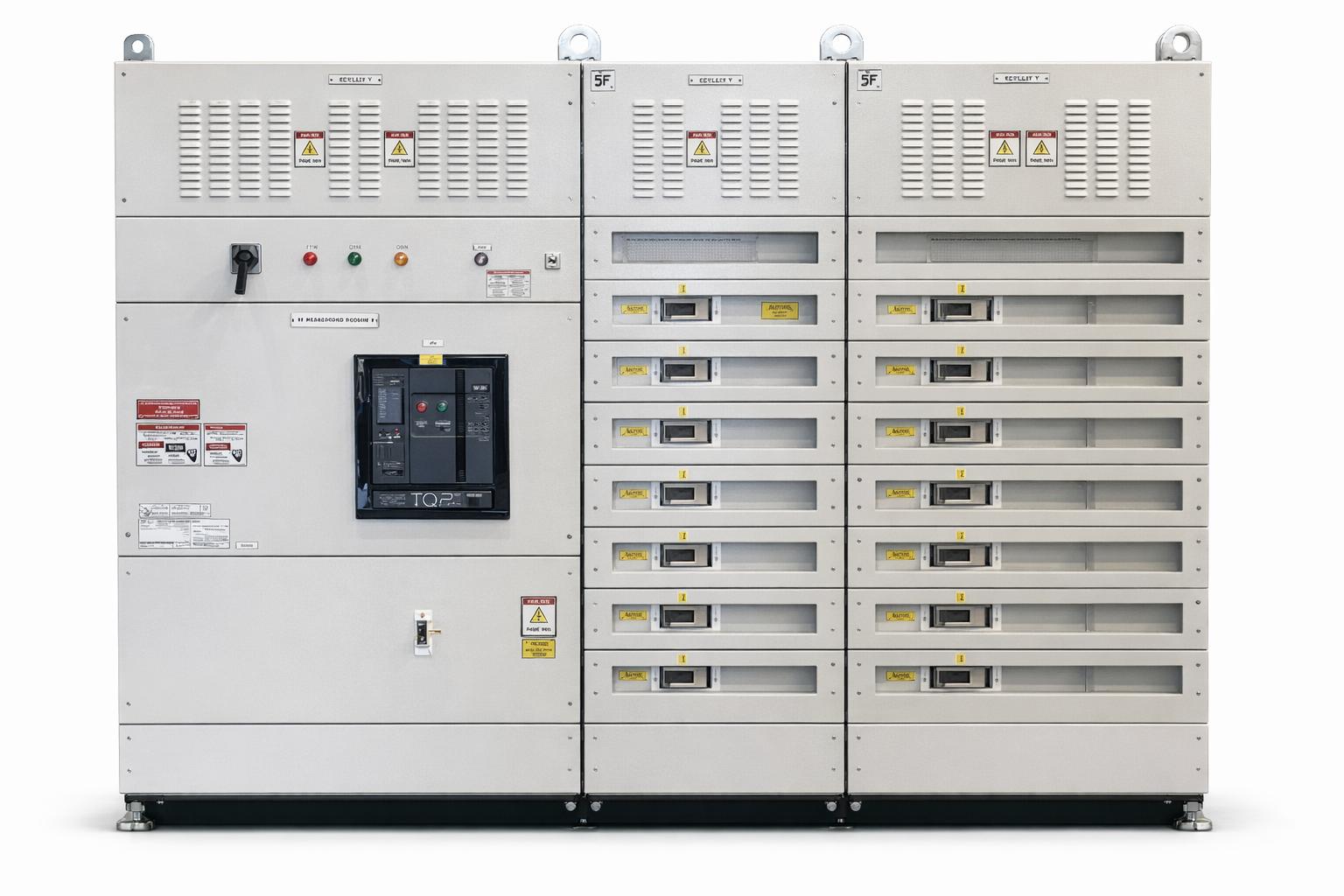

Switchgear & Distribution

Main Breaker: Fuse | 100 to 6,000 AF

Feeder Number: 0 to 20+

Feeder Size: No Breaker up to 3,000 AF | 3,000 AT

Main Breaker Type: Electronic Trip Unit LSIG | LSI | Thermal Magnetic LI

Pole: 1-Pole | 3-Pole

Connection: Bus Bar | Cable

Auxiliary Transformer: None | 5 to 75 kVA

Additional Options

Fans | Heaters

Pull Section

DOE | Non-DOE

Remote Monitor Provision

Vacuum Circuit Breaker (VCB)

Meter Cabinet

UL | CUL Rating

Power Meter

One Unit. One Delivery. One-Day Installation.

Comprehensive capabilities from design to deployment

01

Design & Configuration

Work with our engineering team to specify the exact configuration for your needs.

02

Factory Assembly & Testing

Complete integration and comprehensive testing in a controlled factory environment.

03

Delivery & Commissioning

One-day installation with rapid commissioning and minimal site disruption.

Built for Real-World Deployment

Supporting high-demand applications with a integrated architecture that simplifies deployment and accelerates time to power.

EV Charging Infrastructure

Data Center Power

Renewable Energy

Ready to Transform Your Power Infrastructure?

Let’s discuss how Integrated Power Modules can accelerate your project timeline and reduce deployment complexity.
